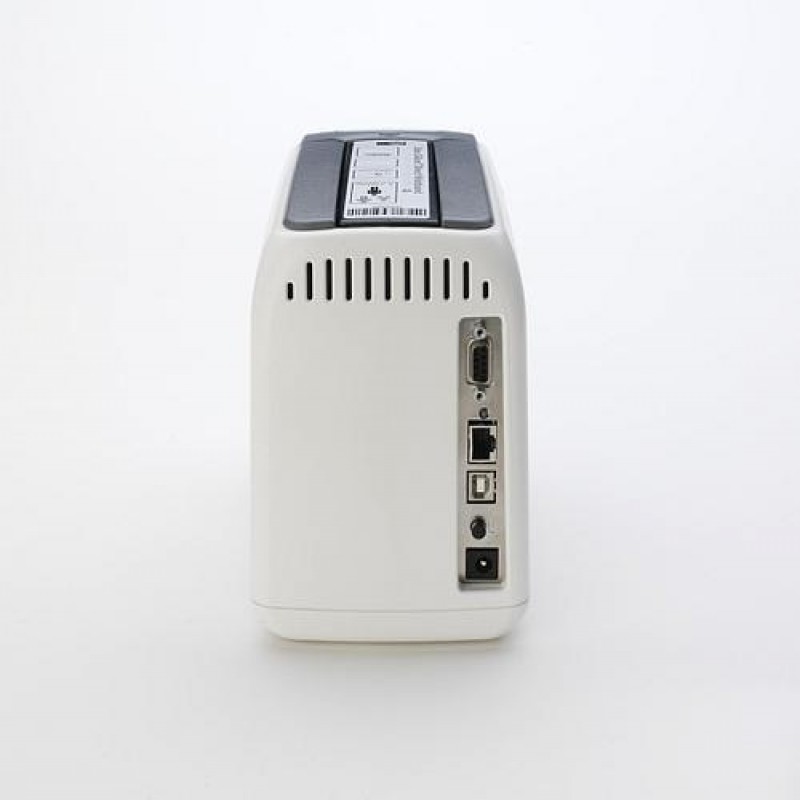

• Quick & easy wristband cartridge loading• Automatic print speed setting—up to 4 ips depending on installed cartridge• Direct thermal printing of barcodes, text and graphics• Dual-wall frame, impact-resistant plastic• ZPL® or ZPL II® programming language• 32 bit RISC processor• 8 MB (2 MB user-available) Flash memory (standard)• 16 MB (4 MB user-available) SDRAM memory (standard)• Element Energy Equalizer™ (E3™) for superior print quality • Dual communications interface: serial and USB• Odometer for print-length tracking• Illuminated media low/media out indicator• Tool-less printhead and platen replacement• Unicode™-compliant for multi-language printing• Instant media calibration—no wasted media• 16 resident expandable bitmap fonts• One resident scalable font• Head-up sensor• Standard tear-off mode feature• XML-enabled printing—allows XML communications from information systems• ENERGY STAR® qualified.
Solutions:
• Event Mgmt
• Ticketing
• Healthcare
• Hospitality
• Public sector
Specification
Printer Specifications: Maximum Print Length• 22"/558 mm Minimum Print Length• 3"/76 mm Print Widths• 0.75"/19.05 mm, 1"/25.4 mm, 1.1875"/30.16 mm Resolution• 300 dpi/12 dots per mm Maximum Print Speed• 2"/51 mm per second (Healthcare)• 4"/102 mm per second (Z-Band Fun & Z-Band Splash)
Physical Characteristics• Width: 5"/127 mm• Height**: 7"/178 mm• Depth: 9.5"/242 mm• Weight: 3.1 lbs/1.4 kg.
Options and Accessories• Zebra Net® 10/100 Print Server (internal)—factory-installed only, offered in combination with serial/USB interface• Zebra Net® b/g Print Server (internal)—factory-installed only, offered in combination with serial/USB interface• Font packs—Asian and other international font kits.
